How to Install All-Flow Gutter Guards on Tiled Roofs

Cut in around the ridge caps.

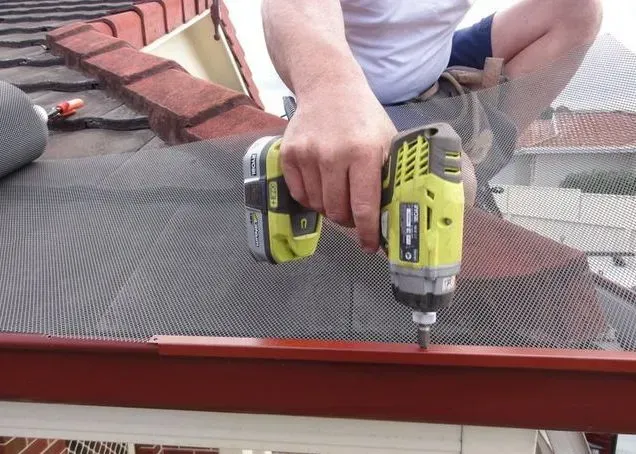

Secure the mesh to the gutter with angle trim.

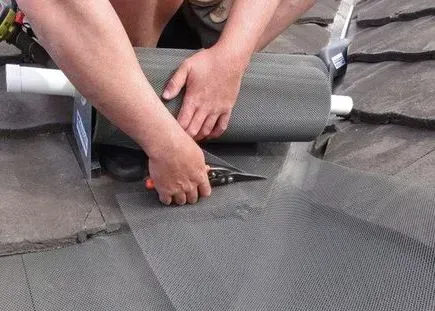

Roll out the gutter guard mesh. Make sure to allow for flap.

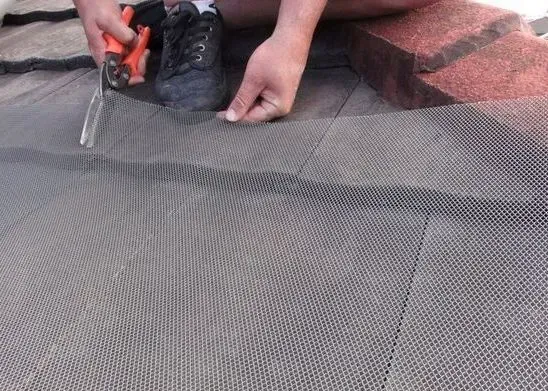

Make relief cuts along the gutter guard mesh.

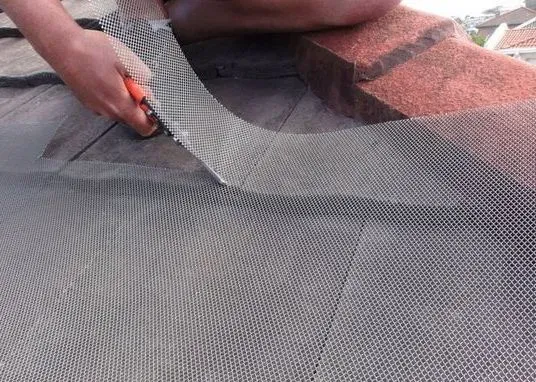

Cut across the nose of the second course of roof tiles. Allow approximately 10-15mm extra space.

Precisely cut around cap. Allow 10-15mm extra space.

Allow for mitre join.

Tuck the flaps under the roof tiles.

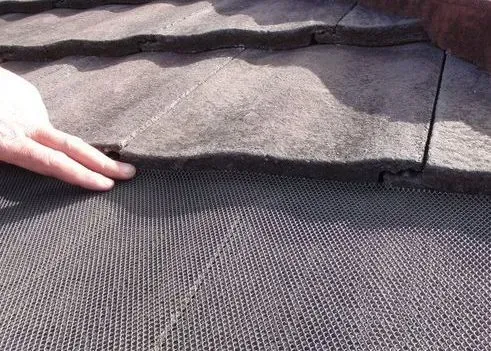

Firmly press the gutter guard mesh onto the nose of the roof tiles. Apply silicone for secure bond.

The tile roof gutter guard 500mm aluminium mesh is installed successfully.

Position yourself on top of the roof valley with the DIY gutter guard kit for tile valleys.

Roll the gutter guard mesh down the roof valley.

Make sure to roll out the valley gutter guard mesh properly and allow for some extra past the gutter.

Allow for extra mesh to go past your gutters.

Precisely cut around the ridge capping. Allow 10-15mm extra for silicone or flexi point.

Make cut along the edge of the capping.

Attach gutter guard mesh to the capping.

Make cuts down the edge of the roof tiles. Remember to allow for flap.

Carefully lift the tile and securely tuck the flap under it.

Cut more flaps along the valley of your tiled roof.

Cut on both sides of the valley. Take care to keep the gutter guard mesh taut and even.

Lift the tile and tuck the flap underneath.

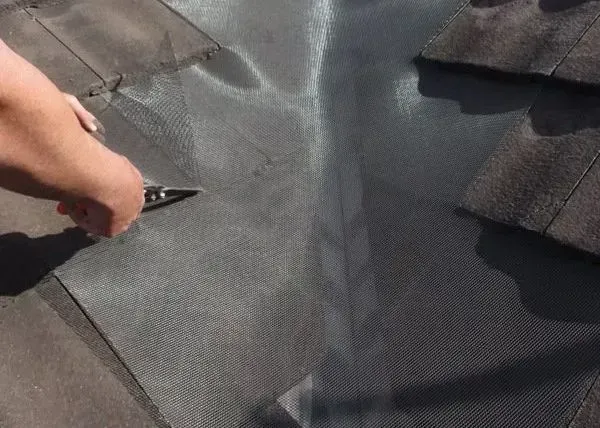

Repeat until you reach the bottom of the valley of your tiled roof.

Your valley gutter guard mesh is installed successfully on your tiled roof.
